(reference) Press fit Chain Terminal

(Reference) Introduction page of press-fit chain pin terminal of Needle-eye type

Press fit Chain Terminal description

Press fit Chain Terminal features

  • Mitigation of damage to the through-hole portion of the board
  • Terminals can be automatically inserted into boards and bobbins by using a chain pin terminal inserter.

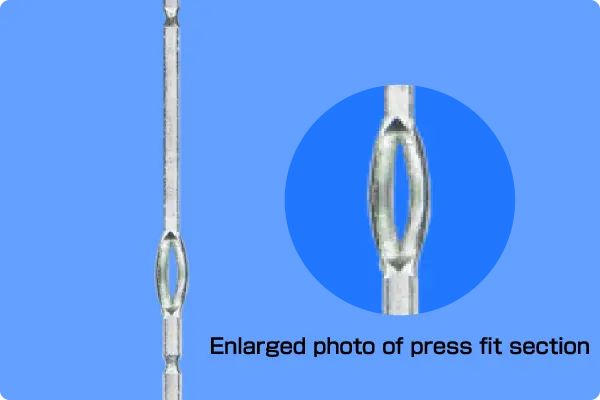

Appearance of press-fit chain pin terminal photo
Appearance of press-fit chain pin terminal

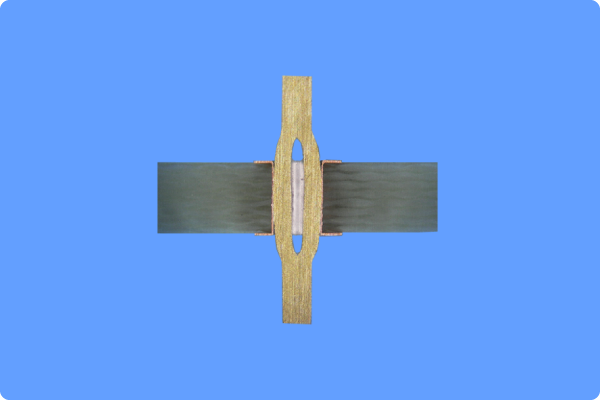

Cross-section after insertion of through-hole substrate photo
Cross-section after insertion of through-hole substrate
Cross-section of press-fit continuous pin terminal insertion section photo
Cross-section of press-fit continuous pin terminal insertion section
Through-hole board insertion section photo
Through-hole board insertion section

Reference data for press-fit chain pin terminals (needle-eye type)

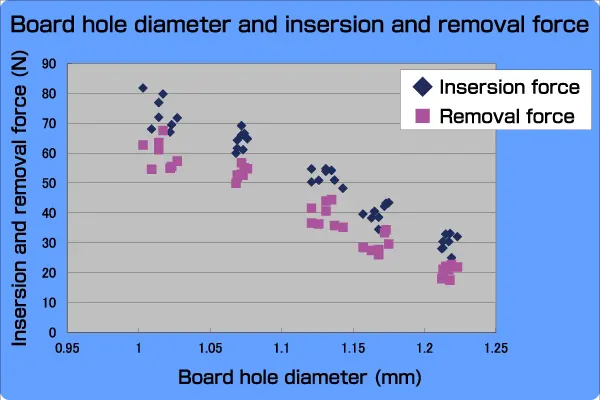

Relationship between Board Hole Diameter and Insertion Force/Pull Force

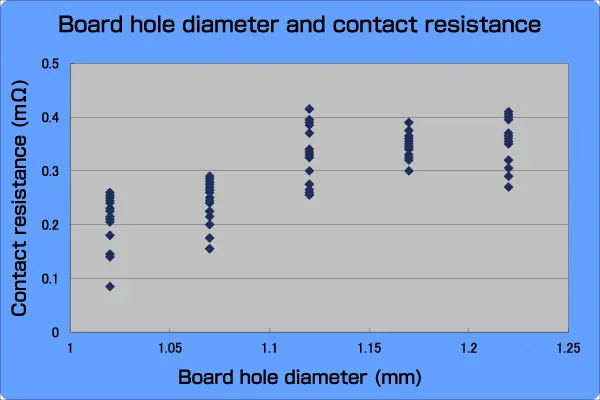

Relationship between Board Hole Diameter and Contact Resistance
  • Terminal : ☐0.64㎜ Tin plating
  • Substrate material : FR-4
  • Board thickness : 1.6㎜

Reference Recommended Hole Diameter : φ1.15±0.05㎜
