Proposal-type Full Custom Pin headers to resolve board connection problems

Full custom Pin headers description and index page.

Full Custom Pin Headers overview

This product solves the problem of "terminal thickness, length, shape, and pitch" or "it is difficult to use with standard pin headers manufactured by the manufacturer due to the specifications" or "it cannot be found with existing products in the beginning."
We propose to solve the problem with the full custom pin header realized by our terminal manufacturing technology, terminal insertion technology and product development capabilities.

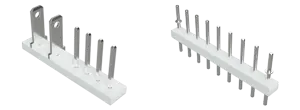

Full Custom Pin Headers overview image

Full Custom Pin Headers features

Base part is substrate material

Flexible terminal pitch

It can accommodate irregular pitch, thus improving flexibility in board design.

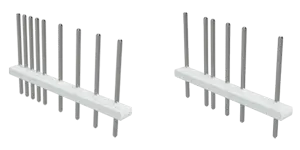

Flexible terminal pitch image

Flexible base shape

Space is saved with the base shape that matches the board module and case.

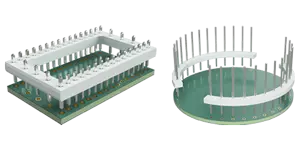

Flexible base shape image

Be resistant to heat

Compared to the plastic base, it is more resistant to heat-induced solidity and deformation, and has the same coefficient of thermal expansion as the mating board, making it effective for stress relaxation.

Reduction of initial costs

No expensive mold cost is required.

Variety of terminals

Various specifications

Available in a variety of sizes, lengths, shapes, etc.

Various specifications image

Combination of different terminals

Different terminals can be combined depending on the application.

Combination of different terminals image

Full Custom Pin Header Product Example Index

Here is an excerpt of products that have contributed to solving customers' problems.

  • Wave pin headers Wave pin headers image Wave pin header that absorbs and mitigates thermal stress, etc.
  • SMT type SMT type image Pin headers to SMT board modules
  • Free standing Free standing image Single-line, self-supporting pin headers
  • Through hole contact pin headers Through hole contact pin headers image Pin headers that can be connected without solder
  • Snap off Snap off image Finally, a pin header leaving only terminals
  • Conversion adapter Conversion adapter image Conversion adapters that are also effective in preventing discontinuous components
  • Card edge Card edge image Pin headers subject to card edges
  • Terminal hold contact Terminal hold contact image Hold-type pin header that connects boards horizontally and vertically
  • Spring Pin Headers Spring Pin Headers image (reference) Pin headers that can be contacted simply by pushing
  • Others (1) Others (1) image Introduction to Various Pin Headers
  • Others (2) Others (2) image Introduction to Various Pin Headers
