About SMT type Pin Headers
Overview and features
It can be used as an electrical connection mechanism component to convert the board module into SMT.

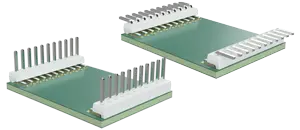

![Image of SMT type Pin Headers](../../../../products/pin-header/custom/image/pin01.png)
SMT type Pin Headers product examples
Single-sided SMT
![Single-sided SMT photo](../../../../products/pin-header/custom/image/pin02.png)
Specifications
A | B | C | D | E | F | G | P |
---|---|---|---|---|---|---|---|
☐0.4 | 1.6 | 3.5 ~ 25 | 1.0 or more | 0.8 or more | 0.7 or more | D + 1.5 | 1.27 |
☐0.5 | 1.6 | 3.5 ~ 25 | 1.0 or more | 0.8 or more | 0.8 or more | D + 1.5 | 1.27 |
Base material | Terminal material | Plating |
---|---|---|
CEM-3, etc | Brass (C2700W) | Sn |
Double-sided SMT
![Double-sided SMT photo](../../../../products/pin-header/custom/image/pin03.png)
Specifications
A | B | C | D | E | F | G | P |
---|---|---|---|---|---|---|---|
☐0.4 | 2.0 | 2.0 ~ 15 | 1.0 ~ 3.0 | 0.8 or more | 0.7 or more | D + 1.5 | 1.27 |
☐0.5 | 2.1 | 2.0 ~ 15 | 1.0 ~ 3.0 | 0.8 or more | 0.8 or more | D + 1.5 | 1.27 |
Base material | Terminal material | Plating |
---|---|---|
CEM-3, etc | Brass (C2700W) | Sn |
