Spring Pin Headers (reference)

(Reference) This is an introduction to the pin header used by pushing a terminal with spring property against the other party.

About Spring Pin Headers (reference)


These headers can establish contact simply by being pressed against the other side.
They can be used for reinforcing grounds and for module contacts.
Both through hole and SMT types are available, to match the configuration of the mounting side of the pin header.

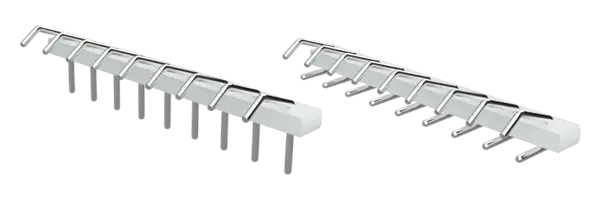

Spring Pin Headers photo
Spring Pin Headers omage

Spring Pin Headers applications

Motherboard metal case

Motherboard metal case image

Motherboard to module

Motherboard to module image
